G.A.L. Gage Company :: Weld Measuring Gauges - Adjustable Sizes

Weld Measuring Gauges from G.A.L. Gage Company, permit you to accurately check welds of varying sizes quickly and easily. You can measure Weld Throat Thickness, Butt Fillet Type Welds, Weld Length, Misalignments (High-Low), and much more depending upon the Gauge selected.

Weld Measuring Gauges are sturdy, well-made, and come in numerous types to perfectly fit your requirements.

Our Weld Measuring Gauges will surely provide you with many years of service whether in the shop or in the field.


We gladly accept ALL major forms of payment for your Welding needs!

Multi-Purpose Welding Gauge
~ Imported by G.A.L. Gage ~
SCALE:INCH or METRIC

Cat # 30 (Inch) or Cat # 31 (Metric)

Use This Gauge To Check:
• Butt Weld Height • Weld Leg • Weld Throat • Width of Weld Seam • Bevel Angle • Under Cut • Gap Size

$85.00

Cat # 30 (Inch) Gauge Measures:
2.75" x 2" • 6.985 cm x 5.08 cm

Cat # 31 (Metric) Gauge Measures:
7.62 cm x 6.35 cm • 3" x 2.5"

Measurement Scale:




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
Cat # 30 (Inch)
Multi-Purpose Welding Gauge - Inch
Multi-Purpose Welding Gauge - Inch - Expanded ViewExpanded View

Cat # 31 (Metric)
Multi-Purpose Welding Gauge - Metric
Multi-Purpose Welding Gauge - Metric - Expanded ViewExpanded View

Electronic Depth / Pit Gauge
Appearance of carrying case may vary
Electronic Depth / Pit Gauge - Expanded ViewExpanded View
0-1" / 0-25mm Electronic Depth / Pit Gauge
SCALE:INCH & METRIC

Cat # SPI13-749-7

Large LCD - 0.0005" (0.01mm) Resolution, ±0.001" (0.025mm) Accuracy, 0.06" Dia Probes, 2 3/8" Base, Fitted Case & Battery Included, Certificate of Calibration Traceable to NIST, Measurement Scale: Inch / Metric.

$68.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

Digital Welding Gauge
SCALE:INCH & METRIC

Cat # 18

With LCD display, will hold either the zero setting or measured value at any position for differential measurements.

$109.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
Digital Welding Gauge - With LCD display, will hold either the zero setting or measured value at any position for differential measurements.
Digital Welding Gauge - Expanded ViewExpanded View

One side is Inch:
Combo-Welding Gauge - Can Measure in Inch or Metric!
Combo-Welding Inch Gauge - Expanded ViewExpanded View

Other side is Metric:
Combo-Welding Gauge - Can Measure in Inch or Metric!
Combo-Welding Metric Gauge - Expanded ViewExpanded View
Combo-Welding Gauge
~ Imported by G.A.L. Gage Company ~
SCALE:INCH & METRIC

Cat # 20

Can Measure in Inch or Metric!
One side is Inch, the other side is Metric

Combo-Welding Gauge - Uses Combo-Welding Gauge - Uses Combo-Welding Gauge - Uses
Combo-Welding Gauge - Uses Combo-Welding Gauge - Uses Combo-Welding Gauge - Uses

The Combo-Welding Gauge can measure in Inch or Metric all of the following:

• Root Size   • Fillet Weld Leg   • Butt Weld Height   • Fillet Weld Throat   • Angle of Preparation

$103.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

Adjustable Fillet Weld Gauge
SCALE:INCH or METRIC

Cat # 3

Unequal Leg Measurement Feature

Measure Fillet Weld & Weld Throat Thickness, Available in Inch or Metric

$90.00

Measurement Scale:




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
Adjustable Fillet Weld Gauge - Unequal Leg Measurement Feature, Measure Fillet Weld & Weld Throat Thickness
Adjustable Fillet Weld Gauge - Expanded ViewExpanded View
View Our Product Video

Automatic Weld Size Weld Gauge - For Accurate Calibration of Butt Fillet Type Welds
Automatic Weld Size Weld Gauge - Expanded ViewExpanded View
View Our Product Video
Automatic Weld Size Weld Gauge
SCALE:INCH or METRIC

Cat # 6

For Accurate Calibration of Butt Fillet Type Welds, Available in Inch or Metric

$35.00

Measurement Scale:




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

Bridge Cam Gauge
SCALE:INCH & METRIC

Cat # 4

The following measurements are possible in either inches or millimeters: Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, Weld Throat Size, and more.

$126.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
Bridge Cam Gauge
Bridge Cam Gauge - Expanded ViewExpanded View
View Our Product Video

Economy Single Purpose Hi-Lo Welding Gauge - 1/32 or Zero Line, Eliminates Rejects - Improves Productivity, Available in Inch or Metric
Economy Single Purpose Hi-Lo Welding Gauge - Expanded ViewExpanded View
View Our Product Video
Economy Single Purpose Hi-Lo Welding Gauge
~ Imported by G.A.L. Gage Company ~
SCALE:INCH or METRIC

Cat # 2

Eliminates Rejects - Improves Productivity, Available in Inch or Metric. Delivered with a protective leather-like carry pouch.

$38.00

Measurement Scale:




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

PRO Single Purpose Hi-Lo Welding Gauge
~ Made in the U.S.A. ~
SCALE:INCH or METRIC

Cat # 2 PRO

Eliminates Rejects - Improves Productivity, Available in Inch or Metric.

$49.00

Measurement Scale:




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
PRO Single Purpose Hi-Lo Welding Gauge - 1/32 or Zero Line, Eliminates Rejects - Improves Productivity, Available in Inch or Metric
PRO Single Purpose Hi-Lo Welding Gauge - Expanded ViewExpanded View
View Our Product Video

HI-LO Welding Gauge - Measures Internal Alignment, New Slim Design Is 30% Lighter
HI-LO Welding Gauge - Expanded ViewExpanded View
View Our Product Video
HI-LO Welding Gauge
~ Patented ~
SCALE:INCH & METRIC

Cat # 1

Measures Internal Alignment, New Slim Design Is 30% Lighter

$124.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

"Mini Sub" Socket Weld Gauge
SCALE:INCH

Cat # 14

Check Throat Dimensions, Checks All Pipe Schedule, All Stainless Steel

$98.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
'Mini Sub' Socket Weld Gauge - Check Throat Dimensions, Leg Length, All Stainless Steel
'Mini Sub' Socket Weld Gauge - Expanded ViewExpanded View

Digital Pit Depth Gauge w/Probes & Rods 1'' - 6''
Digital Pit Depth Gauge - Expanded ViewExpanded View
Digital Pit Depth Gauge
SCALE:INCH & METRIC

Cat # 13DPR

W/Probes & Rods 1" - 6". Measurement Scale: Reads BOTH Inch & Metric. Probes Included: .025 & .062 Diameter. CR2032 Battery Included. Certificate of Calibration Traceable to NIST.

$325.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

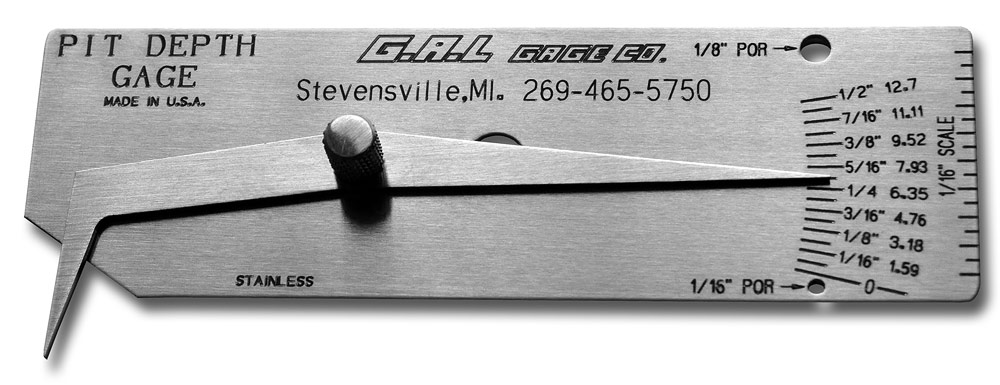

Pit Depth Gauge
SCALE:INCH & METRIC

Cat # 5a

Undercuts/Pits to 1/2 Inch by 1/32 Inch Increments ... along with Metric Equivalent Markings. Check Undercuts/Pits, Porosity, All Stainless Steel.

$59.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
Pit Depth Gauge - Check Undercut, Porosity, Pits, All Stainless Steel
Appearance of carrying case may vary
Pit Depth Gauge - Expanded ViewExpanded View
View Our Product Video

Pipe Pit Gauge - Range is 0 to 1/2'' in 1/64'' & .010 Increments, Arm Can be Locked in Place at Any Dimension, All Stainless Steel
Pipe Pit Gauge - Expanded ViewExpanded View
Pipe Pit Gauge
SCALE:INCH or METRIC

Cat # 17

Range is 0 to 1/2" in 1/64" & .010 Increments, Arm Can be Locked in Place at Any Dimension, All Stainless Steel, Available in Inch or Metric

$86.00

Measurement Scale:




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

Pocket Bridge Cam Gauge
SCALE:INCH & METRIC

Cat # 4a

Check Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, and more.

$141.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
Usage Guide Print-Ready PDFUsage Guide Print-Ready PDF
Pocket Bridge Cam Gauge - Check Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, and more.
Pocket Bridge Cam Gauge - Expanded ViewExpanded View

Skew-T Fillet Weld Gauge INCH - Check Angle of Vertical Member, Weld Acute Side, Weld Obtuse Side
Skew-T Fillet Weld Gauge INCH - Expanded ViewINCH - Expanded View

Skew-T Fillet Weld Gauge METRIC - Check Angle of Vertical Member, Weld Acute Side, Weld Obtuse Side
Skew-T Fillet Weld Gauge METRIC - Expanded ViewMETRIC - Expanded View

View Our Product Video
Skew-T Fillet Weld Gauge
w/ Calculator
SCALE:INCH or METRIC

Cat # 9c

Check Angle of Vertical Member, Weld Acute Side, Weld Obtuse Side, Available in Inch or Metric

$135.00

Measurement Scale:




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

"V-WAC" Single Weld Gauge
~ Patented ~
SCALE:INCH

Cat # 5

Undercuts/Pits to 1/4 Inch, Crowns to 1/4 Inch by 1/64 Inch Increments (Tolerance .006"). Check Undercuts/Pits, Porosity, Crowns, All Stainless Steel.

$36.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
'V-WAC' Single Weld Gauge - Check Undercut, Crown Height, Porosity, Pits, All Stainless Steel
Appearance of carrying case may vary
'V-WAC' Single Weld Gauge - Expanded ViewExpanded View
View Our Product Video

'V-WAC' Single Weld Gauge - Check Undercut, Crown Height, Porosity, Pits, All Stainless Steel
Appearance of carrying case may vary
'V-WAC' Single Weld Gauge - Expanded ViewExpanded View
View Our Product Video
"V-WAC" Single Weld Gauge
SCALE:INCH

Cat # 5d

Undercuts/Pits to 0.240, Crowns to 0.240 by 0.020 Increments. Check Undercuts/Pits, Porosity, Crowns, All Stainless Steel.

$36.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

"V-WAC" Single Weld Gauge
SCALE:METRIC

Cat # 5m

Undercuts/Pits to 6mm, Crowns to 6mm by 0.5mm Increments. Check Undercuts/Pits, Porosity, Crowns, All Stainless Steel.

$36.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
'V-WAC' Single Weld Gauge - Check Undercut, Crown Height, Porosity, Pits, All Stainless Steel
Appearance of carrying case may vary
'V-WAC' Single Weld Gauge - Expanded ViewExpanded View
View Our Product Video

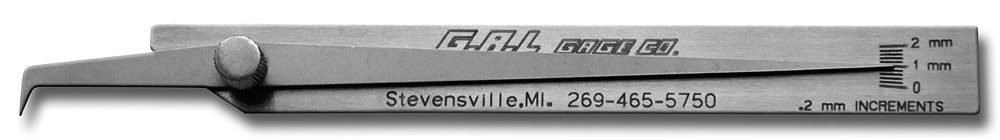

Pit Gauge - Check Undercut/Pits, All Stainless Steel
Appearance of carrying case may vary
Pit Gauge - Expanded ViewExpanded View
Pit Gauge
SCALE:METRIC

Cat # 5f

Undercuts/Pits to 0-2mm by 0.2mm Increments. Check Undercuts/Pits, All Stainless Steel.

$84.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF

Pit Gauge
SCALE:INCH

Cat # 5g

Undercuts/Pits to 0.08", Crowns to 0.04" by 0.005" Increments. Check Undercuts/Pits, Crowns, All Stainless Steel.

$84.00




Please allow 4-6 days for delivery.


Detailed Specifications Print-Ready PDFDetailed Specifications Print-Ready PDF
Pit Gauge - Check Undercut/Pits, Crowns, All Stainless Steel
Appearance of carrying case may vary
Pit Gauge - Expanded ViewExpanded View

For Delivery Outside the United States:

If your order is to be delivered to a location outside the United States, we generally must add 10% to cover the additional Shipping & Handling charges. However, depending upon your items ordered and delivery location, this additional 10% might be too high or too low.

Please contact us with your list of desired items and delivery location so we may quote this adjusted total more accurately:

orderdesk@galgage.com

Delivery Outside the United States




G.A.L. Gage Company

G.A.L. Gage Company :: Alignment, Measurement & Weld Measuring GaugesG.A.L. Gage Company :: Alignment, Measurement & Weld Measuring GaugesG.A.L. Gage Company :: Alignment, Measurement & Weld Measuring Gauges
Maglite® Flashlights  |  Exacto Pit Gauges  |  Gap Wedge Gauges  |  Product Videos  |  Request a Catalog
Measuring Gauges  |  Measuring Calipers  |  Measuring Fillets  |  Measuring Keys  |  Measuring Gaps
Measuring Pits  |  Gap-A-Let® Rings  |  Tool Kits  |  Inspection Mirrors  |  Contact Us  |  Warranty

G.A.L. Gage Company :: Alignment, Measurement & Weld Measuring GaugesG.A.L. Gage Company :: Alignment, Measurement & Weld Measuring GaugesG.A.L. Gage Company :: Alignment, Measurement & Weld Measuring Gauges

G.A.L. Gage Company
2953 Hinchman Road, Stevensville, Michigan 49127-9722
Telephone: (269) 465-5750  •  Facsimile: (269) 465-6385


© 1999 - 2017
G.A.L. Gage Company
All rights reserved.

We gladly accept ALL major forms of payment for your Welding needs!
Member:
G.A.L. Gage Company :: Alignment, Measurement & Weld Measuring Gauges
Cornerstone Chamber of Commerce
Member:
G.A.L. Gage Company :: Alignment, Measurement & Weld Measuring Gauges
The Southwest Michigan Business & Tourism Directory
Design & Hosting
Lighthouse Colorprint
(269) 428-7062

We gladly accept ALL major forms of payment for your Welding needs!
Visit the G.A.L. Gage Company Mobile-Friendly Site
G.A.L. Gage Company :: Alignment, Measurement & Weld Measuring Gauges
G.A.L. Gage Company :: Alignment, Measurement & Weld Measuring Gauges
G.A.L. Gage Company :: Alignment, Measurement & Weld Measuring Gauges
G.A.L. Gage Company
2953 Hinchman Road, Stevensville, Michigan 49127-9722
Telephone: (269) 465-5750  •  Facsimile: (269) 465-6385
G.A.L. Gage Company :: Alignment, Measurement & Weld Measuring Gauges
